Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Rated Power | 1-3kw |
| Certification | CE Certified |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Weight
100-1000kg
Warranty
1 Year
Country of Origin
India
Specifications
| Voltage | 220 V |
| Oil Pump | Automatic Oil System |
| Body Weight | 1300 Kg |
| Spindle Power. | 3.2 KW Air / Water Cooled Spindle |
| Main Switch | Omron |
| Inverter | Double Vdf Rituo & Best |
| Dust Controller | Optional 3KW |
| Moving System | Belt System / Helical |
| Electronics | Schneider & Siemens - Germany |
| Machine Accuracy | <0.3 mm |
| Table Size | 1425*3000*250 mm |
| Working Size | X-1300* Y-2500*Z-300 mm |
| Transmission- Z | 25mm Z Ball Screw Drive With Break System -Tbi -Taiwan |
| Max Air Move Speed | 20000 mm/min |
| Motor & Driver | Stepper & Servo Motor Drive |
| Packing Dimension | 3200*1950*1700 |
| Collet | 3mm/6mm/12mm And Spiner |
| Transmission -X/Y | X/Y Helical Rack & Pinion (Bai Qiang) |
| Table Structure | Cast Steel |
| Max Working Speed | 10000 mm/min |
| Guide Rail | Lm Guide Rail 10 / mm Hiwin |
| Bed Structure | T Slot Aluminium Table |
| Spindle Speed. | 0 -18000 RPM |
| Controller | DSP A11S Rich Auto |
| Tool Box | 2 Pieces 20 Type Bits |

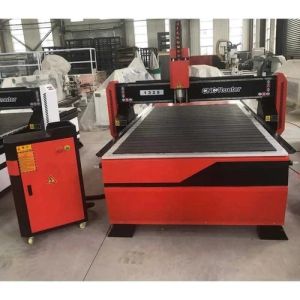

Looking for "1325-K2 CNC Router Machine" ?
